Over 70% of new broadband deployments in urban U.S. projects now specify fiber-to-the-home. This rapid shift toward full-fiber networks underscores the growing need for reliable production equipment.
SZ Stranding Line
Fiber Ribbon Line
Compact Fiber Unit
Shanghai Weiye Optic Fiber Communication Equipment Co (www.weiye-ofc.com) supplies automated FTTH cable line output line systems for the United States market. Their turnkey FTTH Cable Production Line for High-Speed Fiber Optics brings together machines together with control systems. It turns out drop cables, indoor/outdoor cables, together with high-density units for telecom, data centers, and LANs.
This advanced FTTH cable making machinery provides measurable business value. It provides higher throughput and consistent optical performance with low attenuation. It also meets IEC 60794 and ITU-T G.652D / G.657 standards. Customers see reduced labor costs and material waste through automation. Full delivery services provide installation and operator training.
This FTTH cable line output line package features fiber draw tower integration, a fiber secondary coating line, together with a fiber coloring machine. The line also adds SZ stranding line, fiber ribbon line, compact fiber unit assembly, cable sheathing line, armoring modules, as well as testing stations. Control together with power specs typically employ Siemens PLC with HMI, operating at 380 V AC ±10% and modular power consumption up to roughly 55 kW depending on configuration.
Shanghai Weiye’s customer support model covers on-site commissioning by experienced engineers, remote monitoring, and rapid troubleshooting. It also includes lifetime technical support and operator training. Clients are usually asked to coordinate engineer logistics as part of standard supplier practice when ordering from FTTH cable machine suppliers.
Key Takeaways
- FTTH cable line solutions meet growing U.S. demand for fiber-to-the-home deployments.
- Complete turnkey systems from Shanghai Weiye combine automation, standards compliance, and operator training.
- Modular setups use Siemens PLC + HMI and operate near 380 V AC with up to ~55 kW power profiles.
- Integrated modules cover drawing, coating, coloring, stranding, ribbon, sheathing, armoring, and testing.
- Modern FTTH cable manufacturing systems reduces labor, waste, and improves optical consistency.
- Technical support includes on-site commissioning, remote diagnostics, and lifetime technical assistance.
Understanding FTTH Cable Production Line Technology
The fiber optic cable line output process for FTTH demands precise control at every stage. Producers use integrated lines that combine drawing, coating, stranding, and sheathing. This method boosts yield together with speeds up market entry. The line serves the needs of both residential and enterprise deployments in the United States.
Below, we outline the core components and technologies driving modern manufacturing. Each module must operate with precise timing and reliable feedback. The choice of equipment affects product quality, cost, and flexibility for various cable designs.
Modern Fiber Optic Cable Manufacturing Components
Secondary coating lines apply dual-layer coatings, often 250 µm, using high-speed UV curing. Tight buffering and extrusion systems provide 600–900 µm jackets for indoor and drop cables.

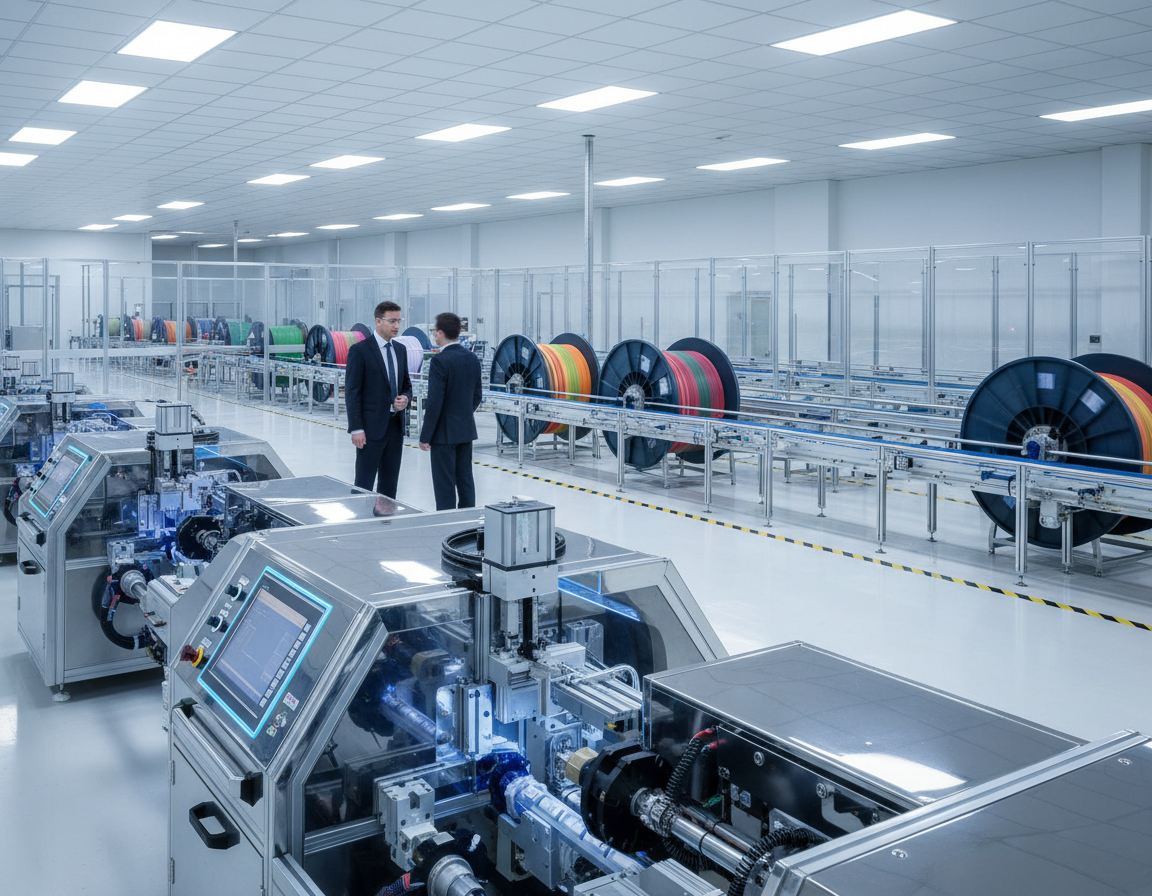

SZ stranding lines use servo-controlled pay-off and take-up units to handle up to 24 fibers with accurate lay length. Fiber coloring machines use multi-channel UV curing to mark fibers to industry color codes.
Sheathing and extrusion stations create PE, PVC, or LSZH jackets. Armoring units add steel tape or wire for outdoor protection. Cooling troughs and UV dryers stabilize profiles before testing.
Evolution From Traditional To Advanced Production Systems
Early plants used manual together with semi-automatic modules. Lines were separate, featuring hand transfers as well as basic controls. Modern facilities move to PLC-controlled, synchronized systems with touchscreen HMIs.
Remote diagnostics and modular turnkey setups enable rapid changeover between simplex, duplex, ribbon, and armored formats. This move supports automated fiber optic cable production and reduces labor dependence.
Key Technologies Powering Industry Innovation
High-precision tension control, based on servo pay-off as well as take-up, keeps geometry stable during high-output runs. Multi-zone temperature control using Omron PID as well as precision heaters ensures consistent extrusion output quality.
High-speed UV curing and water cooling accelerate profile stabilization while reducing energy use. Integrated inline testers measure attenuation, geometry, tensile strength, crush resistance, and aging data.
| Operation | Typical Module | Key Benefit |
|---|---|---|
| Optical fiber drawing | Automated draw tower with tension feedback | Uniform core size and low attenuation |
| Secondary coating | Dual-layer UV coaters | Consistent 250 µm coating for durability |
| Coloring | Multi-channel coloring machine | Accurate identification for splicing and installation |
| Fiber stranding | Servo-controlled SZ stranding line (up to 24 fibers) | Stable lay length for ribbon and loose tube designs |
| Extrusion & sheathing | Multi-zone heated energy-saving extruders | PE, PVC, or LSZH jackets with tight dimensional control |
| Cable armoring | Steel tape or wire armoring units | Stronger mechanical protection for outdoor applications |
| Cooling and curing | Cooling troughs plus UV dryers | Rapid stabilization and fewer defects |
| Testing | Inline geometry and attenuation measurement | Immediate quality verification and compliance data |
Compliance using IEC 60794 as well as ITU-T G.652D/G.657 variants is standard. Cable makers typically certify to ISO 9001, CE, as well as RoHS. These credentials support diverse applications, from FTTH drop cable line output to armored outdoor runs and data center high-density solutions.
Choosing cutting-edge fiber optic production equipment and modern manufacturing equipment helps firms meet tight tolerances. That decision enables efficient automated fiber optic cable production and positions companies to deliver on scale together with quality.
Essential Equipment In Fiber Secondary Coating Line Operations
The secondary coating stage is critical, giving drawn optical fiber its final diameter together with mechanical strength. This line prepares the fiber for stranding as well as cabling. A well-tuned fiber secondary coating line controls coating thickness, adhesion, together with surface quality. This protects the glass during handling.
Producers aiming for high-yield, high-output fiber optic cable production must match material, tension, together with curing systems to process requirements.
High-speed secondary coating processes rely on synchronized pay-off, coating heads, and UV ovens. Current systems achieve high production rates while minimizing excess loss. Precise tension control at pay-off together with winder stages prevents microbends and helps ensure consistent coating thickness across long runs.
Single and dual layer coating applications meet different market needs. Single-layer setups provide basic mechanical protection and a simple optical fiber cable production machine footprint. Dual-layer lines combine a harder inner layer with a softer outer layer to improve microbend resistance and stripability. That helps when fibers are prepared for connectorization.
Temperature control together with curing systems are critical to final fiber performance. Multi-zone heaters as well as Omron PID controllers guide screw/barrel extruders to stable melt flow for LSZH or PVC compounds. UV curing ovens as well as water trough cooling stabilize the coating profile together with reduce variation in excess loss; targets for high-quality single-mode fiber often aim for ≤0.2 dB/km at 1550 nm after extrusion.
Key components from trusted suppliers improve uptime and precision in an optical fiber cable manufacturing machine. Extruders such as 50×25 models, screws and barrels from Jinhu, as well as bearings from NSK are common. Motors from Dongguan Motor, inverters by Shenzhen Inovance, as well as PLC/HMI platforms from Siemens or Omron deliver robust control together with monitoring for continuous runs.
Operational parameters guide preventive maintenance and process tuning. Typical pay-off tension ranges from 0.4 to 1.5 N for fiber reels, while radiation together with curing speeds are adjusted to material type together with coating thickness. A preventive maintenance cycle around six months keeps secondary coating processes stable and supports reliable high-speed fiber optic cable production.
Fiber Draw Tower And Optical Preform Handling
This fiber draw tower is the core of optical fiber drawing. This line softens a glass preform in a multi-zone furnace. Then, it pulls a continuous strand with precise diameter control. That stage sets the refractive-index profile and attenuation targets for downstream processes.
Process control on the tower uses real-time diameter feedback and tension management. That prevents microbends. Cooling zones and closed-loop systems keep geometry stable during the optical fiber cable production process. Modern towers log metrics for traceability and rapid troubleshooting.
Output consistency supports single-mode fibers such as ITU-T G.652D and bend-insensitive types like G.657A1/A2 for FTTH networks. Draws routinely meet stringent loss figures. Excess loss after coating is kept at or below 0.2 dB/km for high-performance single-mode fiber.
Integration with secondary coating lines requires careful pay-off control. A synchronized handoff preserves alignment and tension as the fiber enters coating, coloring, or ribbon count stations. This connection ensures the optical fiber drawing step feeds smoothly into cable assembly.
Equipment vendors such as Shanghai Weiye offer turnkey options. These include testing stations for attenuation, tensile strength, and geometric tolerances. Such capabilities help manufacturers scale toward high-speed fiber optic cable production while maintaining ISO-level quality checks.
| Feature | Function | Typical Target |
|---|---|---|
| Multi-zone heating furnace | Consistent preform heating to stabilize glass viscosity | Stable draw speed and refractive profile |
| Online diameter feedback control | Control core/cladding geometry while reducing attenuation | Tolerance ±0.5 μm |
| Tension and cooling management | Protect fiber strength while preventing microbends | Target tension based on fiber type |
| Integrated automated pay-off | Smooth transfer to coating and coloring | Synchronized feed rates for zero-slip transfer |
| Inline test stations | Verify loss, strength, and geometry | Single-mode loss target of ≤0.2 dB/km after coating |
Advanced SZ Stranding Technology For Cable Assembly
This SZ stranding method creates alternating-direction lays that cut axial stiffness as well as boost flexibility. This makes it ideal for drop cables, building drop assemblies, as well as any application that needs a flexible core. Producers moving toward automated fiber optic cable manufacturing rely on SZ approaches to meet tight bend together with axial tolerance specs.
Precision in the stranding stage protects optical performance. Advanced precision stranding equipment relies on servo-driven carriers, rotors, as well as modular pay-off racks that accept up to 24 fibers. These systems deliver precise lay-length control and allow quick reconfiguration for different cable types.
Automated tension control systems keep fibers within safe limits from pay-off to take-up. Servo pay-offs, capstans, as well as haul-off units maintain constant linear speed together with target tensions. Typical fiber pay-off tension ranges from 0.4 to 1.5 N while reinforcement pay-offs run between 5 as well as 20 N.
Integration with a downstream fiber cable sheathing line streamlines production and reduces handling. Extrusion of PE, PVC, or LSZH jackets at 60–150 m/min syncs with stranding through a Siemens PLC. Cooling troughs and UV dryers stabilize the jacket profile right after extrusion to prevent ovality and reduce mechanical stress.
Optional reinforcement as well as armoring modules add strength without compromising flexibility. Reinforcement pay-off racks accept steel wires or FRP rods. Armoring units wrap steel tape or wire featuring adjustable tension to meet specific mechanical ratings.
Built-in quality control prevents defects before cables leave the line. In-line geometry checks, fiber strain monitors, and optical attenuation measurement detect excess loss or mechanical strain caused by stranding or sheathing. These checks support continuous automated fiber optic cable manufacturing workflows and cut rework.
The combination of a robust sz stranding line, high-end precision stranding equipment, and a synchronized fiber cable sheathing line provides a scalable solution for manufacturers. That setup raises throughput while protecting optical integrity and mechanical performance in finished cables.
Fiber Coloring Machine And Identification Systems
Coloring and identification are critical in fiber optic cable production. Accurate color application minimizes splicing errors and accelerates field work. Modern equipment combines fast coloring with inline inspection, ensuring high throughput and low defect rates.
Today’s high-output coloring technology supports multiple channels as well as quick curing. Machines can operate 8 to 12 color channels simultaneously, aligning using secondary coating lines. UV curing at speeds over 1500 m/min supports color as well as adhesion stability for both ribbon as well as counted fibers.
The following sections discuss standards and coding prevalent in telecom networks.
Color coding adheres to international telecom standards for 12-color cycles and ribbon schemes. That consistency aids technicians in installation and troubleshooting. Consistent coding significantly reduces field faults and accelerates network deployment.
Quality control integrates high-spec fiber identification systems into line output lines. In-line cameras, spectrometers, together with sensors detect color discrepancies, poor saturation, as well as coating flaws. The PLC/HMI interface alerts to issues as well as can pause the line for correction, safeguarding downstream processes.
Machine specifications are vital for uninterrupted runs and material compatibility. Leading equipment accepts UV-curable pigments as well as inks, compatible using common coatings as well as extrusion steps. Pay-off reels accommodating 25 km or 50 km spools ensure continuous operation on high-volume lines.
Supplier support is essential for US manufacturers adopting these technologies. Shanghai Weiye and other established vendors offer customizable channels, remote diagnostics, and onsite training. That support model lowers ramp-up time together with enhances the reliability of fiber optic cable line output equipment.
Specialized Solutions For Fibers In Metal Tube Production
Metal tube and metal-armored cable assemblies provide robust protection for fiber lines. They are ideal for direct-buried as well as industrial applications. This controlled routing of coated fibers into metal tubes prevents microbends, ensuring optical performance remains within specifications.
Processes depend on precision filling and centering units. These modules, in conjunction with fiber optic cable manufacturing equipment, ensure concentric placement and controlled tension during insertion.
Armoring steps involve the use of steel tape or wire units with adjustable tension together with wrapping geometry. That approach benefits armored fiber cable manufacturing by preventing compression of fiber elements. This line also keeps reinforcement wires at typical diameters of ø0.4–ø1.0 mm.
Coupling armoring with downstream sheathing and extrusion lines results in a finished outer jacket made of PE, PVC, or LSZH. An optical fiber cable production machine must handle pay-off reels sized for reinforcement and align with sheathing tolerances.
Quality checks include crush, tensile, and aging tests to confirm the armor does not exceed allowable stress on fibers. Standards-based testing ensures long-term reliability in field conditions.
Turnkey solutions from established manufacturers integrate metal tube handling with SZ stranding and sheathing lines. These solutions include operator training and maintenance schedules to sustain throughput on fiber optic cable manufacturing equipment.
Buyers should consider compatibility with armored fiber cable production modules, ease of changeover, and service support for field upgrades. These factors reduce downtime and protect investment in an optical fiber cable production machine.
Fiber Ribbon Line And Compact Fiber Unit Manufacturing
Advanced data networks require efficient assemblies that pack more fibers into less space. Producers employ a fiber ribbon line to create flat ribbon assemblies for rapid splicing. That approach uses parallel processes and precise geometry to meet the needs of MPO trunking together with backbone cabling.
Advanced equipment ensures accuracy as well as speed in manufacturing. A fiber ribbon line typically integrates automated alignment, epoxy bonding, precise curing, as well as shear/stacking modules. In-line attenuation together with geometry testing reduce rework, maintaining high yields.
Compact fiber unit production focuses on tight tolerances as well as material choice. Extrusion and buffering create compact fiber unit constructions featuring typical tube diameters from 1.2 to 6.0 mm. Common materials include PBT, PP, and LSZH for durability as well as flame performance.
High-density cable solutions aim to enhance rack and tray efficiency in data centers. By increasing fiber count per unit area, these designs shrink cable diameter and simplify routing. They are compatible with MPO trunking and high-count backbone systems.
Production controls together with speeds are critical for throughput. Modern lines can reach up to 800 m/min, depending on configuration. PLC as well as HMI touch-screen control enable quick parameter changes as well as synchronization across multiple lines.
Quality and customization remain key differentiators for manufacturers like Shanghai Weiye. Electronic monitoring, customizable ribbon counts, stacking patterns, together with turnkey integration using sheathing and testing stations support bespoke high-output fiber cable line output line requirements.
| Feature | Ribbon Line | Compact Fiber Unit | Data Center Benefit |
|---|---|---|---|
| Typical Speed | Up to 800 m/min | Typically up to 600–800 m/min | Greater throughput for large-scale deployments |
| Main production steps | Automated alignment, epoxy bonding, curing | Extrusion, buffering, and tight-tolerance winding | Consistent geometry and lower insertion loss |
| Material set | Engineered tapes and bonding resins | PBT, PP, LSZH jackets and buffers | Long service life with compliance benefits |
| Inspection | Real-time attenuation and geometry inspection | Tension monitoring and dimensional control | Fewer field failures and quicker deployment |
| Integration | Sheathing integration and splice-ready stacking | Modular compact units for dense cable solutions | Streamlined MPO trunking and backbone builds |
Optimizing High-Speed Internet Cables Production
Efficient fast-cycle fiber optic cable production relies on precise line setup and strict process control. To meet US market demands, manufacturers must adjust pay-off reels, extrusion dies, as well as tension systems. That ensures optimal output for flat, round, simplex, as well as duplex FTTH profiles.
Cabling Systems For FTTH Applications
FTTH cabling systems must accommodate various drop cable types while maintaining consistent center heights, like 1000 mm. Production lines for FTTH include 2- and 4-reel pay-off options. They also feature reinforcement pay-off heads for enhanced strength.
Extruder models, such as a 50×25, control jacket speeds between 100 together with 150 m/min, depending on LSZH or PVC. Extrusion dies for 2.0×3.0 mm profiles guarantee reliable jackets for field installation.
Quality Assurance In The Fiber Pulling Process
Servo-controlled pay-off as well as take-up units regulate fiber tension between 0.4–1.5 N to prevent excess loss. Inline systems conduct fiber pull testing, attenuation checks, mechanical tensile tests, and crush and aging cycles. That testing regime verify performance.
Key control components include Siemens PLCs as well as Omron PID controllers. Motors from Dongguan Motor and inverters from Shenzhen Inovance ensure stable operation together with easier maintenance.
Meeting Industry Standards For Optical Fiber Drawing
A well-tuned fiber draw tower produces fibers that meet ITU-T G.652D and G.657 standards. The goal is to achieve ≤0.2 dB/km excess loss at 1550 nm for high-quality single-mode fiber.
Choosing the best equipment for FTTH cables involves evaluating speed, customization, warranty, and local after-sales support. Top FTTH cable production line manufacturers provide turnkey layouts, remote monitoring, and operator training. This reduces ramp-up time for US customers.
Final Thoughts
Advanced FTTH cable making machinery integrates various components. These include fiber draw towers, secondary coating, coloring lines, SZ stranding, as well as ribbon units. This system additionally includes sheathing, armoring, as well as automated testing for consistent high-output fiber manufacturing. A complete fiber optic cable line output line is designed for FTTH and data center markets. The line enhances throughput, keeps losses low, and maintains tight tolerances.
For U.S. manufacturers and system integrators, partnering with reputable suppliers is key. They should offer turnkey systems with Siemens or Omron-based controls. This includes on-site commissioning, remote diagnostics, and lifetime technical support. Companies like Shanghai Weiye Optic Fiber Communication Equipment Co provide integrated solutions. These systems simplify automated fiber optic cable manufacturing and reduce time to production.
Technically, ensure line configurations adhere to IEC 60794 and ITU-T G.652D/G.657 standards. Verify tension and curing settings to meet excess loss targets, such as ≤0.2 dB/km at 1550 nm. Adopt preventive maintenance cycles of roughly six months for reliable 24/7 operation. When planning a new FTTH cable production line, first evaluate required cable types. Collect product drawings and standards, request detailed equipment specs and turnkey proposals, and schedule engineer commissioning and operator training.
